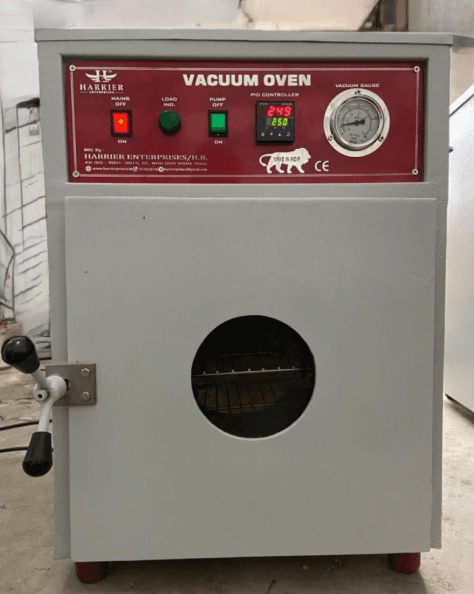

Vacuum Ovens
Vacuum ovens are high-performance thermal drying units developed for efficient low-temperature moisture removal and heat treatment under reduced pressure, providing precise temperature control and safe processing of heat-sensitive materials for laboratory, research, and industrial use.
Vacuum ovens are advanced thermal processing systems designed for drying, heat treatment, and material processing under reduced pressure. By operating in a controlled vacuum or inert gas environment, these ovens enable efficient drying at lower temperatures, making them ideal for heat-sensitive materials and precision applications.
High-temperature vacuum drying ovens are widely used in laboratories, industrial facilities, and research environments where controlled atmospheres and accurate temperature regulation are critical. These systems support operation under high vacuum, ultra-high vacuum, and inert or reducing gas atmospheres such as nitrogen and hydrogen.
Applications of Vacuum Ovens
- Vacuum ovens are used across a broad range of scientific and industrial processes, including:
- Vacuum drying of heat-sensitive materials
- Diffusion and bonding processes
- Hot pressing and sintering
- Heat treatment and annealing
- Glass processing and crystal growth
- Fusion and extinction applications
- Electronics and electrocoating processes
- Pharmaceutical drying and sterilization
- Paint baking and printing industries
- Polymer drying for trial molding and R&D
Functional Advantages of Vacuum Ovens
- Uniform and efficient drying under reduced pressure
- Prevention of oxidation and thermal degradation
- Enhanced drying efficiency at lower temperatures
- Suitable for sterilization, cooking, and non-volatile material processing
- Reliable operation for research, education, and industrial production.
Key Features
- Programmable heating timer with automatic shut-off
- Audible alarm system with heat buzzer
- Temperature calibration and correction
- Over-temperature safety shutdown
- Adjustable heating power percentage
- High-precision temperature control (resolution up to 0.1°C)
- Digital display for temperature and time
- Large transparent tempered glass window for observation
- Stainless steel internal chamber for durability and corrosion resistance
- Operation under inert gas environments
- PID microprocessor-based control system
- One-piece silicone door seal for effective vacuum retention
- Pressure gauge for monitoring internal vacuum levels
- Dual ball valves for vacuum connection and inert gas inlet
- Heat-resistant observation window on the door
Design Highlights
- Silicone pressure sealing for excellent insulation
- Glass fiber insulation for improved energy efficiency
- Heating plates on all four chamber walls for uniform temperature distribution
- High-accuracy temperature sensor for stable operation under vacuum
- Contamination-resistant stainless steel chamber construction
Technical Specifications
- Standard Vacuum Oven (Temperature Range up to 200°C)
- Maximum Temperature: 200°C
- Working Temperature: 150°C
- Temperature Fluctuation: ±1°C
- Temperature Controller: PID or HMI controller
- Sensor Type: PT100
- Door Type: Solid door
- Heating Element: Kanthal plate & wire strip heater
- Chamber Design: Rectangular or cylindrical
- Inner Chamber: SS 304
- Exterior: Powder-coated galvanized steel or SS 304
- Insulation: Glass wool
- Shelves: 1 or 2
- Ports: Vacuum port, inert gas port, vent port
- Safety Devices: Overpressure limit, overload breaker, timer, alarm, fuse
- Vacuum Range: Up to 760 mm Hg
- Vacuum Control: Digital electronic control via solenoid valves
Optional Accessories
- Digital vacuum controller
- Vacuum pump
- PLC with HMI
- External SS 304 body construction
- Data logger
Why Choose These Vacuum Ovens?
- Designed for precision, safety, and long-term reliability
- Suitable for laboratory, industrial, and research environments
- Energy-efficient and contamination-resistant construction
- Flexible configurations to meet diverse application needs
- Supported by installation assistance, training, and maintenance options

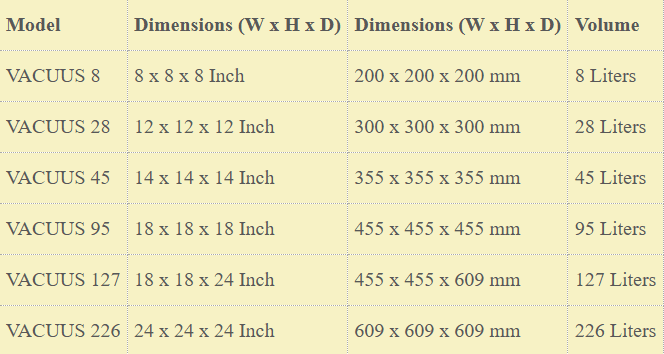

Rectangular Vacuum Oven Dimensions:

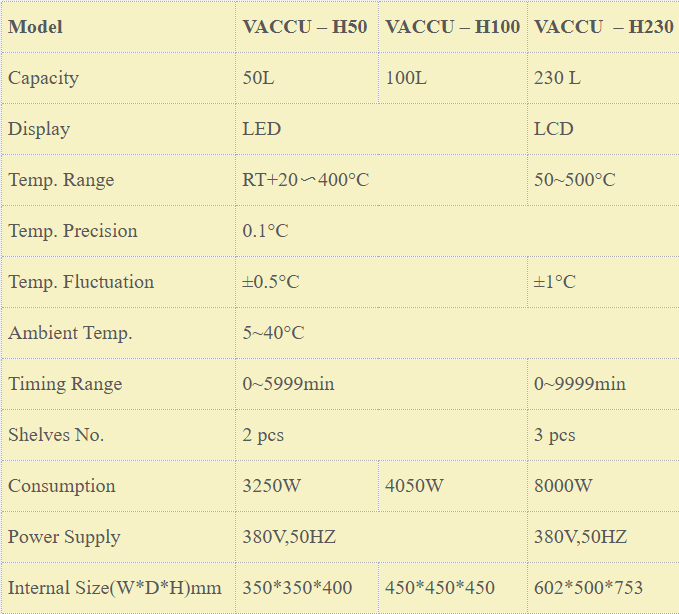

High Temperature Vacuum Oven – Range up to 500°C
Conclusion
- Vacuum ovens are indispensable tools for controlled drying, heat treatment, and material processing in scientific and industrial applications. With precise temperature control, robust safety features, and compatibility with inert gas environments, these systems deliver consistent performance, energy efficiency, and reliable results.
- They are an ideal choice for laboratories and industries seeking accuracy, durability, and flexibility in thermal processing solutions.
