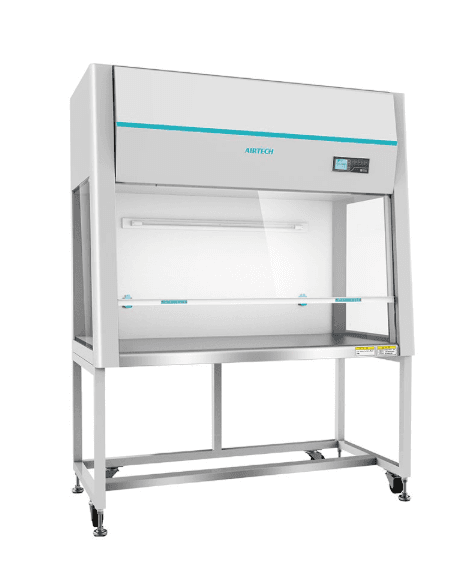

A PCR Cabinet (Polymerase Chain Reaction Cabinet) is a specialized laboratory enclosure designed to provide a clean, contamination-free workspace for PCR and other sensitive molecular biology procedures. It is widely used in chemical, biochemical, genetic, and diagnostic laboratories where protection from nucleic acid contamination is critical.
The PCR workstation combines UV sterilization, HEPA-filtered airflow, and controlled enclosure design to ensure sample integrity and operator safety during DNA amplification and preparation processes.
Purpose of a PCR Cabinet
- The primary function of a PCR cabinet is to prevent cross-contamination during PCR reactions. Since PCR is highly sensitive to even trace amounts of DNA, the workstation provides an environment free from nucleic acids, airborne particles, and microbial contaminants.
- PCR cabinets are also used for:
- DNA and RNA sample preparation
- Molecular biology workflows
- Genetic testing and analysis
- Diagnostic and research applications
Construction & Design
- Fabricated from cold-rolled steel with anti-bacterial powder coating
- Compact, ergonomic design suitable for laboratory bench placement
- Transparent front window for clear visibility
- Mounted on universal castor wheels with leveling feet for easy mobility
- One-piece construction with plug-and-play installation
Filtration & Sterilization System
- HEPA filter efficiency: 99.999% at 0.3 microns
- Disposable pre-filter for extended HEPA filter life
- UV sterilization system for rapid surface and air decontamination
- UV light deactivates nucleic acids within 5 to 30 minutes
- Interlocking safety system ensures UV lamp operates only when the front window is closed
Standard Features of the PCR Cabinet
- LED display for system status
- UV sterilization with safety interlock
- High-efficiency HEPA filtration
- Built-in variable speed fan with solid-state control
- Differential pressure gauge
- Uniform air diffuser for laminar airflow
- Doors with integrated safety switches
- Efficient work surface decontamination
- Quiet operation with low energy consumption
Operation of the PCR Workstation
- The PCR cabinet operates using a UV air re-circulation system, which includes:
- UV lamp
- Dust filters
- Enclosed sterilization chamber
Additional operational features include:
- UV lamp power: 25 W (with digital timer control)
- White light illumination: 15 W for clear visibility
- Plexiglass enclosure with metal framework
- Microprocessor-controlled operation
Maintenance & Basic Care
- PCR cabinets are designed for long service life with minimal maintenance requirements:
- UV decontamination is ozone-free and highly effective
- UV lamps have an extended lifespan of approximately 8,000 hours
- No vibration or excessive noise during operation
- Energy-efficient design
- Suitable for both personal and high-throughput laboratories
Performance Parameters
- Laminar airflow velocity: 0.275 – 0.325 m/s (54–64 fpm)
- Sound emission: < 63 dB
- Light intensity: > 800 Lux
- Controller: Microprocessor-based
- Electrical load: 1–3 A
- Nominal power: 136 – 260 W
- Weight: Approx. 76.5 – 115 kg
Advantages of Using a PCR Cabinet
- Prevents PCR contamination and false results
- Ensures high reproducibility and accuracy
- Protects sensitive DNA/RNA samples
- Enhances laboratory safety
- Easy installation and operation
- Compact and ergonomic design
- Suitable for molecular biology, diagnostics, and research
Applications
- PCR reaction preparation
- DNA/RNA amplification workflows
- Molecular biology research
- Genetic testing laboratories
- Clinical diagnostics
- Academic and research institutions
Conclusion
- PCR Cabinets are essential laboratory tools for ensuring contamination-free environments in molecular biology and genetic research. With advanced UV sterilization, HEPA filtration, safety interlocks, and user-friendly operation, these workstations provide reliable protection for sensitive PCR workflows while maintaining operator safety and sample integrity.
