Laboratory Glassware Washer Machine

Application Areas

• Laboratory glassware washers are widely used for cleaning, sanitization, sterilization, and drying of various laboratory items. Common application areas include:
• Pharmaceutical laboratories
• Production and quality control departments
• Research and development centers
• Disease control and diagnostic laboratories
• Food processing industries
• Chemical manufacturing units
• Electronics and semiconductor industries

Standardized Cleaning Process

• 360-degree spray coverage ensures complete cleaning with no dead zones.
• Dual water inlet points controlled by electromagnetic valves allow selection between tap water and distilled water during wash and rinse cycles.
• Integrated booster pump enables direct intake of purified water without the need for an external pump.
• Advanced safety mechanisms automatically stop operation and drain excess water if overflow is detected, preventing backflow through a sealed drainage system.
• Audio and visual alarms notify users of detergent shortage, overflow, drainage issues, or insufficient water supply.

Filtration System

• High-grade SS 304 filters protect recirculation and drain pumps from damage
• Filters installed at air intake and water inlet points
• Removable, washable, and reusable filter design
• Ensures long equipment life and consistent washing performance

Dual Peristaltic Pump System

• Effective sanitation requires accurate detergent and neutralizer dosing. This is achieved through two independent peristaltic pumps:
• One pump dispenses alkaline detergent during the cleaning phase
• The second pump delivers acid neutralizer to complete the cleaning cycle
• Automatic control ensures precise chemical dosing based on selected programs. The washing chamber features upper and lower rotating spray arms, both monitored for speed and performance to ensure uniform cleaning.

Advanced Drying System

• A high-efficiency hot air drying system ensures complete drying from every angle with 360-degree air circulation. This forced air drying eliminates residual moisture and supports sterilization through elevated temperatures.
• The drying system includes:
• Hot air generator
• High-performance fan
• PLC-controlled airflow and temperature
• Drying temperatures can be set up to 120°C, significantly improving hygiene and sterilization effectiveness.

Human-Centric Operating System

• Available with 4.3-inch or 7-inch color touch panels, offering intuitive operation with real-time animated process display
• PLC and HMI systems provide reliable, stable, and accurate control with anti-magnetic protection and self-diagnostics
• Control parameters include water type, cleaning duration, drying time, water intake, detergent dosing, fan speed, and overflow protection
• Data logging capability stores up to 1,000 operational records
• Power-failure memory ensures uninterrupted automation once power is restored

Microprocessor Control System

• 7-inch color touch display
• Automated water level and injection control
• PLC-based program management
• Adjustable detergent volume
• Up to 100 programmable cycles
• Multiple water types and volumes
• Three-level password protection
• Recirculating water pumps for contaminant removal

Cleaning Programs

• Models YSK-LW120 / 220 / 320 / 420 include 10 factory-preset programs, with additional customizable programs available. Each program may include:
• Pre-wash
• Main wash
• Acid rinse
• Hot water cleaning
• Neutralization
• Drying
• Users can independently set wash time, detergent volume, water temperature, drying temperature, and drying duration.

Washing Levels

• Three independent washing levels
• Automatic manifold connections at all levels
• Easy removal and installation of racks
• Complete rack cleaning at each level

Optional Accessories

• Water conductivity monitoring system
• Water hardness monitoring system
• Sensors for detecting inorganic ions (iron, calcium, magnesium)
• Specialized holders for flasks, beakers, Petri dishes, and bottles
• Printer for detailed wash and cycle reports

KEY FEATURES

• Fully automated system for washing, disinfection, and drying of laboratory glassware
• Stainless steel construction with programmable microprocessor control
• High durability with minimal maintenance requirements

MACHINE CHARACTERISTICS

• Stainless steel construction ensures strength and precision
• High-capacity pumps deliver powerful yet gentle cleaning to prevent glassware damage
• Reduced water consumption (up to 30% less) compared to conventional systems
• Faster washing and drying cycles (up to 35% time savings)
• Independent pumps and valves prevent cross-contamination and backflow
• Integrated vapor condensation prevents odor release and accelerates drying
• Comprehensive safety system with temperature sensors, water level monitoring, and fault alerts
• Flexible washing modules with high adaptability
• Optional rinsing with distilled or deionized water
• Rapid water heating up to 93°C
• Built-in water softening system
• Drying temperatures up to 115°C with HEPA-filtered air
• Pass-through models available for cleanroom applications
• Free-standing or under-bench installation options
• Designed for over 15,000 operational hours without mechanical maintenance

WHY CHOOSE THIS GLASSWARE WASHER?

• These laboratory glassware washer-disinfectors are globally trusted for precision cleaning, disinfection, and drying of laboratory materials. Fully configurable designs, stainless steel chambers, and a wide range of accessories allow safe washing of beakers, flasks, pipettes, volumetric ware, and other laboratory items.
• Engineered for durability, reliability, and low maintenance, these machines provide long-term performance for laboratories, pharmaceutical facilities, hospitals, and research institutions.

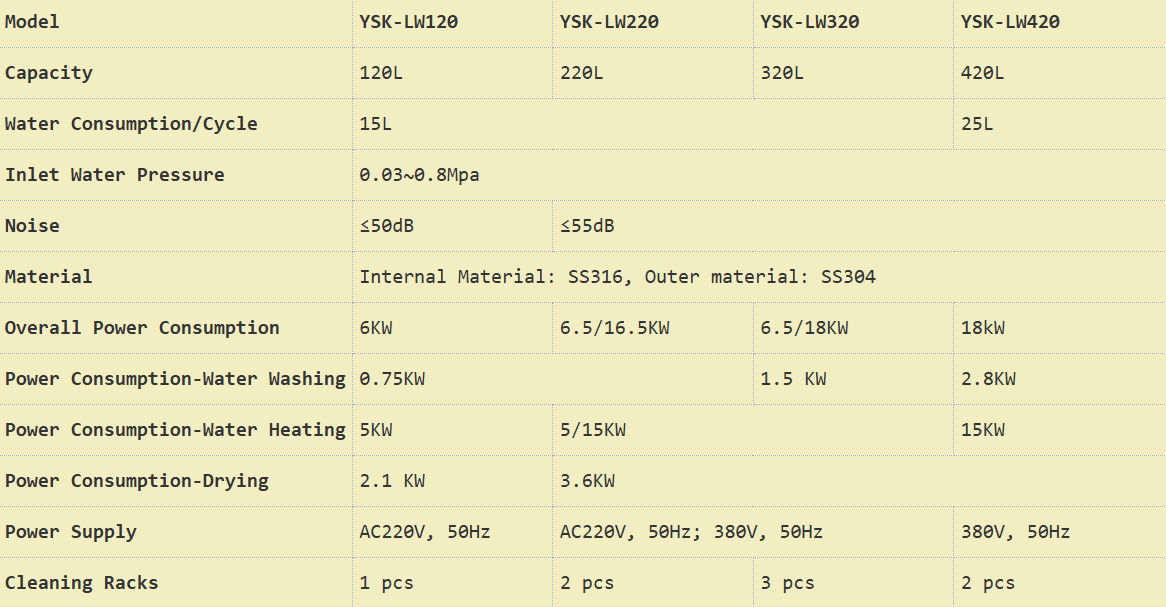

Technical Specifications:
