The gyratory sieve shaker (motorized type) is widely used in laboratory and industrial environments, primarily for granulometric analysis and mechanical screening applications. This process enables accurate determination of particle size in heavy solid materials and bulk samples.
During operation, the sample is placed on a stack of granulometric test sieves where mechanical sieving is performed. To improve efficiency, the sieve shaker acts as a material separator and classifier, commonly referred to as a gyratory motion sieve shaker. It generates a controlled upward and downward gyratory movement, which significantly enhances sieving speed and accuracy.
The gyratory sieve shaker is designed for simple and efficient operation, allowing separation based on particle geometry. It ensures secure fixation of sieves while enabling quick removal and replacement. The gyratory drive mechanism produces a distinct vertical motion pattern that distributes material evenly across the sieving surface, improving screening effectiveness.
Working Principle
- Sieve Stack Arrangement:A series of standard test sieves with progressively decreasing mesh sizes is arranged in a vertical stack. The sieve with the largest mesh opening is placed at the top, followed by finer sieves in descending order. A collecting pan is positioned at the bottom to gather particles smaller than the finest mesh size.
- Sample Placement:The material sample to be analyzed is evenly distributed on the topmost sieve. The sieve stack is then securely clamped to prevent movement during operation, ensuring stability and consistent screening.
- Gyratory Motion Generation:Once the shaker is switched on, the internal gyratory drive system generates a circular horizontal motion combined with a gentle upward and downward movement. This unique motion causes particles to continuously move across the sieve surface rather than remaining stationary.
- Particle Stratification and Separation:The combined motion helps particles reorient and stratify according to size. Smaller particles find openings in the mesh and pass through to the next sieve, while larger particles remain on the current sieve. This stratification improves separation efficiency and prevents clogging of sieve apertures.
- Uniform Distribution of Material:The gyratory movement spreads the sample evenly over the entire sieve surface, allowing maximum utilization of mesh area. This ensures accurate and repeatable particle size analysis.
- Controlled Operating Parameters:The shaker allows independent adjustment of operating time, motion intensity, and vibration mode. These parameters can be optimized based on the type of material, particle size range, and applicable testing standards.
- Collection and Analysis:After the preset operating time, the shaker stops automatically. Each sieve is then removed and the retained material is weighed or examined. The collected data is used to calculate particle size distribution and material classification.
Applications of Gyratory Sieve Shaker
- The gyratory sieve shaker is suitable for a wide variety of materials, both inorganic and organic, including:
- Rocks, sand, clay, feldspar, and granite
- Coal and soil samples
- Powders and granulated materials
- Grains and seeds
- Other solid particulate materials
Common Uses
- Quality Control Testing:Used to verify particle size consistency of raw materials and finished products, ensuring compliance with industry and regulatory standards.
- Construction Material Testing:Applied in the analysis of cement, aggregates, sand, and construction powders to evaluate gradation and material suitability.
- Pharmaceutical Applications:Helps in screening and classification of powders and granules used in tablet, capsule, and formulation processes.
- Mining and Mineral Processing:Used for size classification of ores, minerals, and crushed rock samples during exploration and processing stages.
- Agricultural and Soil Analysis:Assists in soil texture classification, seed grading, and analysis of agricultural inputs such as fertilizers and additives.
- Chemical Industry Testing:Supports separation and analysis of chemical powders, catalysts, and solid compounds for process optimization.
- Food and Grain Processing:Used to grade grains, flour, spices, and food powders to maintain uniform quality and processing efficiency.
- Environmental Testing:Employed in analyzing particulate matter from soil, sediments, and waste samples for environmental monitoring.
- Ceramics and Refractories:Utilized to classify ceramic powders and refractory materials based on particle size distribution.
- Research and Development Laboratories:Supports experimental studies, material characterization, and method development in academic and industrial research.
GYRATORY SIEVE SHAKER FEATURES
- Simple and user-friendly operation
- Efficient particle separation based on size classification
- Suitable for granulometric analysis with independent control of time and motion
- Equipped with a switch, timer, and automatic shut-off function
- Generates controlled upward and downward movement
- Fully enclosed gyratory motor with adjustable speed, low noise operation, and no routine maintenance
- Three operating modes: continuous motion, interval vibration, and gentle shaking
- Designed to agitate particle samples, allowing natural size-based rearrangement
- Fitted with an easy-to-read analog control panel and automatic timer shutdown
- Capable of holding up to seven sieves of 200 mm diameter using a single adapter
- Powered by a robust ¼ HP motor suitable for both full-size and medium-size sieves
- Complies with ASTM testing standards

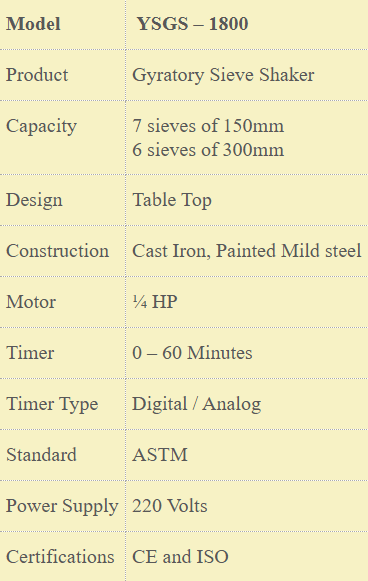

Technical Specifications
Why Choose a Gyratory Sieve Shaker?
- We are a reliable supplier of practical laboratory equipment, dedicated to supporting professionals involved in analysis and research. Our focus is on providing dependable solutions with safe and timely delivery of analytical and biochemical instruments for laboratories, medical facilities, educational institutions, and industrial applications.
- High-performance gyratory sieve shakers are offered to ensure accurate results, operational safety, and customer satisfaction. Each product is designed to deliver optimal performance at a fair and competitive price by eliminating unnecessary costs. Enhance the accuracy and efficiency of your material analysis by choosing this sieve shaker solution. Contact us today to request a quotation.
