Fully Automatic Chemistry Analyzers
The Fully Automatic Chemistry Analyser is designed to perform dry chemistry testing with exceptional ease of use, requiring minimal operator involvement. The process is limited to entering patient details, loading the rotor, and dispensing the blood sample. Unlike conventional liquid chemistry systems, this analyser does not require routine checks or calibrations.
The Fully Automated Urine Chemistry Analyzer is a high-performance system engineered for fast, accurate, and reliable urine analysis using test strips. It integrates advanced technologies, including a flow chamber refractometer for precise measurement of specific gravity and opacity, along with reflectance photometry powered by an intelligent CMOS color sensor.
Each chemical strip pad is automatically scanned to ensure enhanced detection accuracy. The analyzer evaluates reaction zones using four different wavelengths, delivering consistent and dependable results.
Its flexible configuration allows standalone operation or seamless integration with particle analyzers and additional modules, enabling a complete automated diagnostic solution. The system combines efficiency, accuracy, modern aesthetics, and user-friendly operation, making it suitable for demanding laboratory environments.
FULLY AUTOMATED URINE CHEMISTRY ANALYZER
- The Fully Automated Urine Chemistry Analyzer is a fast, reliable system that utilizes test strips combined with advanced detection technologies. It incorporates a flow-chamber refractometer to accurately measure specific gravity and opacity, along with reflectance photometry using an intelligent CMOS color sensor. This sensor automatically scans each test strip pad to ensure precise and consistent results.
- Each reaction zone on the chemical strip is analyzed using four different wavelengths, improving measurement accuracy. The system offers flexible configuration options, allowing it to function independently or integrate with particle analyzers and additional modules. This enables a complete automated diagnostic solution with high efficiency, reliable output quality, and a user-friendly, modern design that meets the expectations of advanced laboratories.
CHEMISTRY ANALYZER FEATURES
- System Type: Fully automated, random access, independent operation with STAT (emergency priority) function
- Processing Speed:200 tests/hour
- Optical System: Fully sealed fixed matrix spectrophotometry
- Wavelength Options: 340, 405, 450, 492, 510, 546, 578, 630, 700, 800 nm
- Wavelength Accuracy: ±1 nm
- Data Storage: Based on computer storage capacity
Test Methods
- Endpoint colorimetric
- Kinetic (rate) method
- Two-point endpoint
- Dual wavelength analysis
- Blank methods (reagent, sample, water)
- Immunoturbidimetry
- Dual-reagent and non-linear detection
Calibration Methods
- Linear: 1-point, 2-point, multipoint
- Non-linear: Logit-4P, Logit-5P, exponential, spline, parabola, Weibull, K-factor
System Components
- Reagent Carousel: Refrigerated (2–8 °C), 60 positions
- Reaction Carousel: 120 fixed, self-cleaning cuvettes
- Temperature Control: 37 °C ±0.1 °C
- Flushing System: Multi-stage cleaning for probes and cuvettes
- Sample Volume: 2 µL – 100 µL (0.1 µL increments)
- Reaction Volume: 150 µL – 900 µL
- Light Source: 12V / 20W halogen lamp
- Water Consumption: ≤ 4 L/hour
- Power Supply: AC 100–240 V, 50/60 Hz
- Operating Conditions:
- Temperature: 10–35 °C
- Humidity: 40–85%
WHY CHOOSE THIS CHEMISTRY ANALYZER?
- This fully automated chemistry analyzer delivers high throughput, exceptional accuracy, and consistent performance. Its robust design supports laboratories, medical facilities, educational institutions, and industrial environments with reliable measurement, monitoring, and control solutions.
- A strong focus is placed on service quality, technical support, and customer satisfaction. The objective is not only to meet but exceed the expectations of modern laboratories that demand precision, efficiency, and dependable operation.

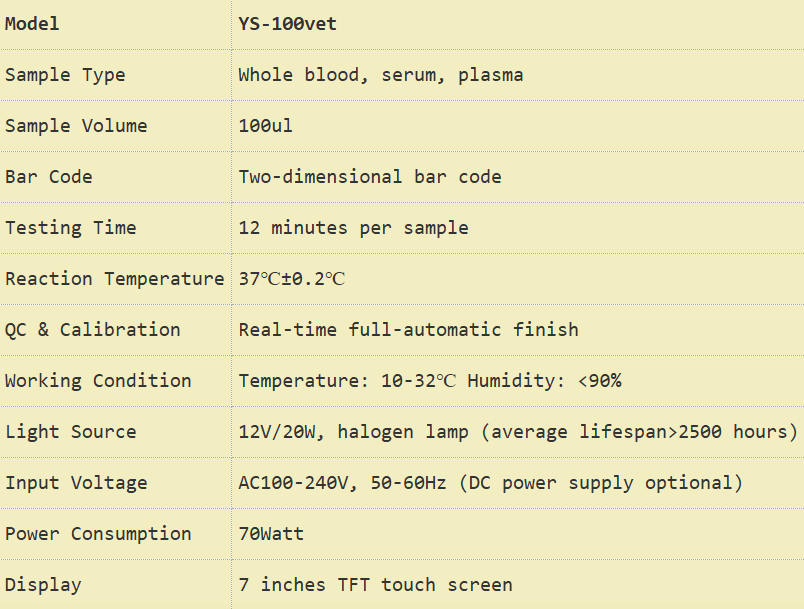

Model YS-100vet:
