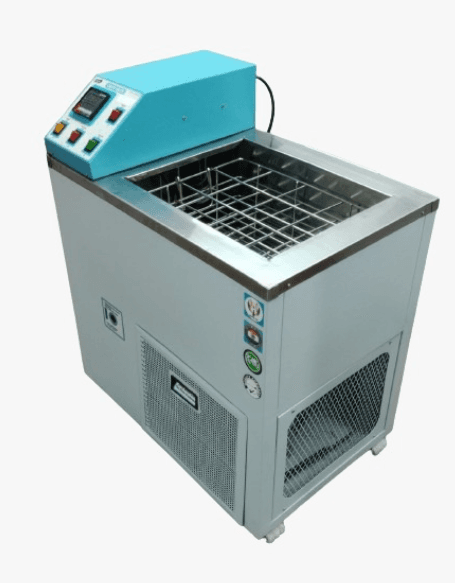

A Cryo Bath is a specialized laboratory device designed to create and maintain a sub-zero liquid environment, typically ranging between –50°C to –70°C. It is widely used in research, medical, pharmaceutical, and biological laboratories where controlled low temperatures are essential for testing, preservation, and experimental procedures.
The process carried out using this system is commonly referred to as cryotherapy or cryogenic processing, where materials or biological samples are exposed to extremely low temperatures under controlled conditions.
Overview
- Cryo baths provide a stable, uniform, and precisely controlled cold liquid medium, making them ideal for applications that require consistent temperature exposure. Advanced temperature controllers and circulation systems ensure excellent thermal uniformity throughout the bath.
- These systems are available in standard as well as customized configurations, depending on user requirements and application needs.
Uses of Cryo Bath
- Cryo bath systems are primarily used for research and controlled cooling applications, including:
- Medical and biological research
- Preservation and conditioning of biological samples
- Cryotherapy research studies
- Plasma bag temperature conditioning
- Neurological and pain-related research
- Studies related to nerve irritation, inflammation, and arthritis
- Experimental research in dementia and neurodegenerative disorders
- Pharmaceutical and biotechnology laboratories
Key Functional Highlights
- Microprocessor-based temperature control for high accuracy
- Circulating pump ensures uniform temperature distribution
- Heavy-duty stainless steel construction for durability
- High-quality heating elements for long operational life
- Customizable configurations available for specialized applications
Construction
- Outer Body: Mild steel with durable powder-coated finish
- Inner Chamber: Stainless steel (SS 304 grade)
- Door Sealing: High-quality gasket with heavy hinges and secure locking
- Heating Element: Premium Nichrome heating elements
- Wiring: Kanthal heating wire embedded around the chamber
- Shelves: 1 or 2 removable trays (model dependent)
- Temperature Control: Electronic digital temperature controller
- Display: LED/LCD digital temperature display
- Control Panel: ON/OFF switch integrated on front panel
- Power Supply: 220 V AC, 50 Hz
- Cord & Plug: Supplied as standard
Product Specifications
Optional Accessories
- Multi-channel data logger (4 to 8 channels)
- CFR 21 Part 11 compliant data logger
- PLC with HMI for real-time graphs and data recording
- Complete stainless steel (SS 304) construction

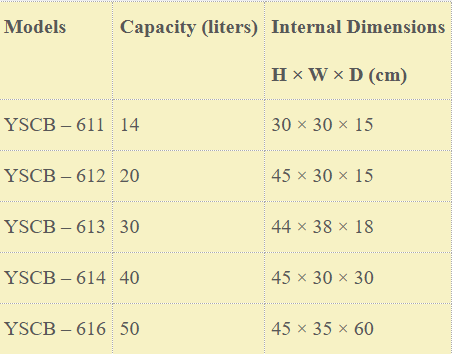

Capacity and Dimensions
Conclusion
- A Cryo Bath is an essential laboratory system for applications requiring precise, uniform, and reliable low-temperature control. Its robust construction, accurate temperature regulation, and safety features make it suitable for medical research, pharmaceutical studies, and biological experimentation.
