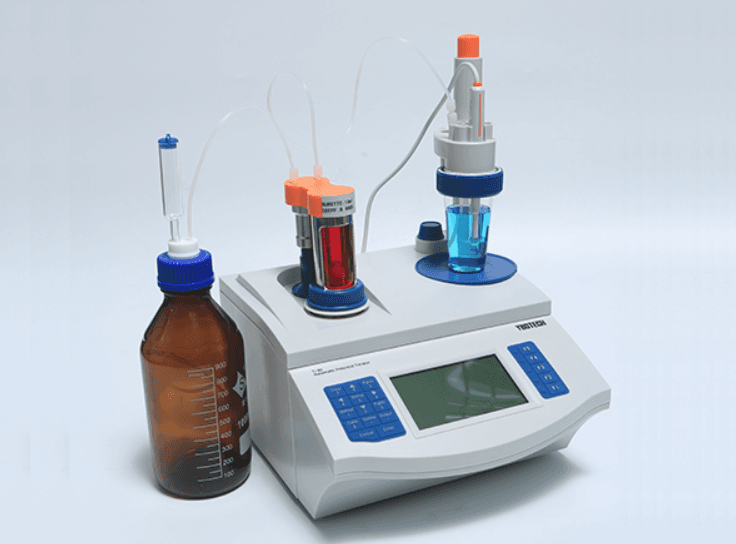

Benchtop Automatic Potential Titrator
High-Precision Automatic Titration for Modern Laboratories
The Benchtop Automatic Potential Titrator is a high-performance laboratory instrument designed to meet the demanding requirements of routine and advanced titration analysis. Its compact benchtop design optimizes laboratory space while delivering exceptional accuracy, repeatability, and ease of operation. The intuitive touchscreen interface ensures smooth workflow, making it suitable for high-throughput laboratory environments.
Equipped with a high-precision dosing system and advanced measurement capabilities, this titrator supports multiple titration methods including acid-base, redox, and selective ion titrations. Built-in security features such as password protection ensure data integrity and controlled user access, making it ideal for regulated laboratory settings.
Product Highlights
- Compact benchtop design for efficient space utilization
- High-precision 40,000-step dosing pump for accurate titrant delivery
- Adjustable and flexible electrode holder for convenient operation
- Multiple titration modes for versatile applications
- Password-protected user access for enhanced data security
- Customizable analysis reports with easy data export options
Applications
- Pharmaceutical quality control laboratories
- Food and beverage testing
- Chemical and petrochemical analysis
- Academic research and teaching laboratories
- Industrial quality assurance and process monitoring
Key Features
- Precision Dosing System: Ensures consistent and highly accurate titration results
- Multiple Measuring Modes: Supports acid, base, redox, and selective ion titrations
- User-Friendly Interface: High-resolution touchscreen for quick and intuitive operation
- Advanced Data Management: Export results via USB, printer, or PC connectivity
- Custom Method Storage: Store up to 100 titration methods for fast recall
- Integrated Stirrer: Ensures uniform mixing for reliable results
- Durable Construction: Designed for long-term, continuous laboratory use
Technical Specifications:
- Measurement Capabilities:
- pH Range: 0.00 – 14.00 pH
- mV Range: up to ±1800 mV
- Temperature Range: 5.0 – 105.0°C
Accuracy
- pH Accuracy: ±0.01 pH
- mV Accuracy: High-precision full-scale measurement
- Temperature Accuracy: ±0.3°C
Storage
- Stores up to 100 titration methods
- Data logging with date, time, titration start/end, concentration, and titration curves
- GLP-compliant data recording
Working Principle (KF Titrator)
- The automatic KF titrator features a fully automated titration system with an integrated valve and burette design, enabling quick replacement and preventing cross-contamination. The system supports automatic recognition of standard pH buffer groups, manual operation, adjustable stirring speed, temperature input, titration end alerts, and operator identification. Designed to meet GLP requirements, it ensures high accuracy, stability, and repeatability.
Specifications:
Why Choose This Titrator?
- This benchtop automatic potential titrator delivers exceptional precision, reliability, and user convenience. Its advanced features, robust construction, and flexible functionality make it a dependable solution for laboratories seeking accurate titration results with efficient data handling and secure operation.
